Tema: Onkyo 2007 - HDMi 1.3a - HQV-Reon Receivers

Onkyo's new line includes the world's first AV receivers to employ Silicon Optix's Reon-VX HQV 1080p video-processing chip as well as the first with Neural-THX Surround processing. Other new features include HDMI version 1.3a, XM and Sirius Satellite radio capability, HD Digital Radio capability, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Microsoft PlaysForSure compatibility. This line also includes models with improved amplifier technology, bi-wire capability, Ethernet and USB connectivity, Audyssey automatic room calibration, and RIHD (Remote Interactive over HDMI) capabilities.

Fuente

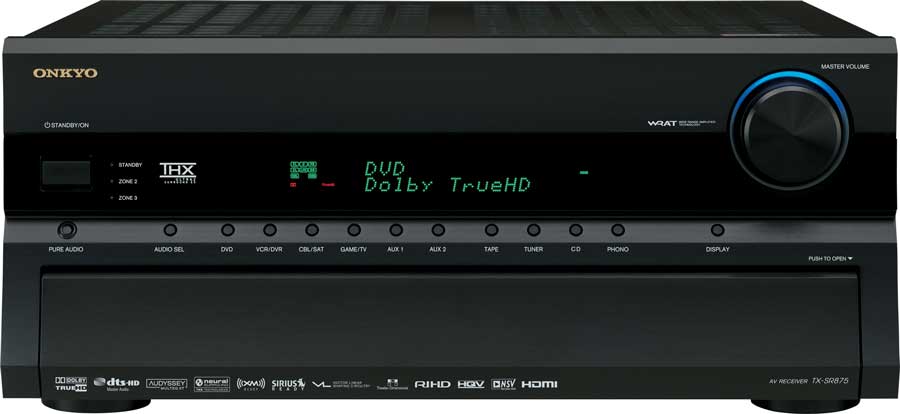

Onkyo’s TX-SR875 has a MRSP of $1,699 and will ship in June,
Onkyo’s TX-NR905 has a MRSP of $2,099 and will ship in August.

Imagen

Se avecina un verano caliente, y no solo por el canvio de temperatura. Si todo sigue igual, tendremos ya al Sherwood, y el Onkyo, el Panasonic, y upgrades del Denon y la revisión del Sony5200. Sabremos diferenciar entre ellos, con tales niveles de referencia? AVANT (yo espero al Sony de momento, a no ser que algun otro me convnca mas claro).

Si ademas estos Onkyo suenan como los de antaño,van a ser el sueño de muchos!!

El mío

Juas que pechá de siglas nuevas.

Y digo yo,¿qué es Neural THX?

Pos investigando un poco...

http://thx.com/technologies/neural.html

Está bien que por fin aparezcan amplis que "entiendan" los nuevos formatos, pero bajo mi punto de vista no es mas que una forma de hacernos cambiar de equipo, puesto que las diferencias respecto a un DTS a todo trapo o al Dolby a 640kbps típico de los formatos de Alta Definición brilla por su ausencia.

Aún así, seguirá saliendo gente que dirá notar las diferencias hasta que un nuevo Molinogordo someta a examen dichas argumentaciones...

Iniciado por Deimos

...seguirá saliendo gente que dirá notar las diferencias hasta que un nuevo Molinogordo someta a examen dichas argumentaciones...

Da por seguro que se hará...

COMPARADOR de modelos Onkyo

¿No se espera nada por parte de Yamaha ?

¿?

Iniciado por hsm1973

¿No se espera nada por parte de Yamaha ?

Yamaha tiene que lanzar su modelo YAMAHA RX-V861. El cual lleva de todo ;)PD Pues parece que va ser que no http://www.yamaha.com/yec/products/p...8&CTID=5000300

Pues sacan un modelo obsoleto ya de partida , no ?

TX-NR905 ($2,100, August 2007)
7.1 A/V receiver, 140 watts per channel
4 HDMI 1.3a inputs, with HDMI upconversion to 1080p
Onboard decoding for Dolby TrueHD and DTS-HD Master Audio
HQV Reon-VX Video processing
THX Ultra2 Certified
Audyssey MultEQ auto speaker calibration
XM- and Sirius-ready
Multiroom functionality for three zones
Networking capabilities for Internet radio and WMA files
HD Radio
USB input for MP3 players

¿Alguien sabe cuantas salidas lleva? Yo ya no cambio el receptor por ninguno que no venga con dos salidas HDMI para TV y proyector.

Un saludo

TX-SR505E ($269.99 a 27/08/2007)

FEATURES
• 130 W/Ch Minimum into 6Ω, 1 Channel Driven, IEC
• DTS®-ES™Discrete/Matrix, DTS® Neo:6, DTS® 96/24, Dolby® Digital EX™, Dolby® Pro Logic IIx
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• 192 kHz/24-Bit DACs for All Channels
• HDMI Pass-Thru (1080p Compatible; 2 Inputs and 1 Output)*
• HDTV-Capable (50 MHz) Component Video switching (3 Inputs and 1 Output)
• WRAT (Wide Range Amplifier Technology)
• Advanced 32-Bit Processing DSP Chip
• Audyssey 2EQ to Correct Room Acoustic Problems and to Calibrate Speakers
• 4 Digital Inputs (2 Optical/2 Coaxial)
• 3 S-Video Inputs and 2 Outputs
• Subwoofer Pre Out
• CinemaFILTER™
• Pure Audio Mode
• A-Form Listening Mode Memory
• Optimum Gain Volume Circuitry
• Color-Coded 7.1-Multichannel Inputs (Receive 7.1 Surround Sound from Compatible Blu-ray and HD-DVD Players)
• Speaker A/B Drive
• Color-Coded Dual Banana Plug-Compatible Speaker Posts (Except Speaker B)
• Crossover Adjustment at 40/50/60/80/100/120/150/200 Hz for Bass Management
• A/V Synchronization Function (Up to 100 ms in 20 ms Steps)
• 40 FM/AM Random Presets
• Compatible with RI Dock for the iPod
• Front Panel Auxiliary Input (for Camcorders, Game Consoles, etc.)
• Preprogrammed RI (Remote Interactive) Remote Control with Mode-Key LEDs

OTHER FEATURES
• Double Bass Function
• Non-Scaling Configuration
• Tone Control (Bass/Treble) for Front L/R Channels
• 4 Composite Video Inputs and 2 Outputs
• 4 A/V Inputs and 1 Output
• 2 Audio Inputs and 1 Output
• Late Night Mode (High/Low/Off)
• Digital Upsampling
• Display Dimmer (3 Modes)
• RDS (PS/RT/PTY/TP)
• Headphone Jack
• Sleep Timer (via Remote)
• Battery-Free Memory Backup
• Aluminum Front Panel


* A separate audio connection is necessary to process multichannel audio.








TX-SR605 ($449.99 a 27/08/2007)

Advanced Features
• DTS-HD Master Audio and Dolby TrueHD Decoding
• HDMI (v. 1.3a) Audio and Video Processing
• HDTV-Capable HDMI (2 Inputs and 1 Output) and Component Video (50 MHz) Switching (3 Inputs and 1 Output)
• HDMI and Component Video Upconversion
• Bi-Amping Capability for Enhanced Musicality and Power
• Audyssey 2EQ™ to Correct Room Acoustic Problems and to Calibrate Speakers
• Onkyo RIHD for System Control
• Compatible with RI (Remote Interactive) Dock for the iPod

Audio Features
• 140 W/Ch Minimum into 6 Ω, 1 kHz, IEC (1 Channel Driven)
• DTS®-ES™ Discrete/Matrix, DTS® Neo:6, DTS® 96/24, Dolby® Digital EX™, Dolby® Pro Logic IIx
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• 192 kHz/24-Bit DACs for All Channels
• WRAT (Wide Range Amplifier Technology)
• Advanced 32-Bit Processing DSP Chip
• 5 Digital Inputs (3 Optical/2 Coaxial)
• Subwoofer Pre Out
• CinemaFILTER™
• A-Form Listening Mode Memory
• Optimum Gain Volume Circuitry
• Non-Scaling Configuration
• Tone Control (Bass/Treble) for Front L/R Channels
• Color-Coded 7.1-Multichannel Inputs
• Independent Crossover Adjustment for F/C/S/SB (40/50/60/80/100/120/150/200 Hz)
• Double Bass Function

Video Features
• 5 S-Video Inputs and 2 Outputs
• 5 Composite Video Inputs and 2 Outputs
• Front Panel Auxiliary Input (for Camcorders, Game Consoles, etc.)

Other Features
• Powered Zone 2 and Zone 2 Line-Out for Playback in Another Room (Separate Source)
• Deinterlacer with Faroudja DCDi Edge™ (Directional Correlational Deinterlacing) Technology
• Pure Audio Mode
• Color-Coded Dual Banana Plug-Compatible Speaker Posts
• A/V Synchronization Function (Up to 100 ms in 10 ms Steps)
• 40 FM/AM Radio Presets
• RDS (PS/RT/PTY/TP)
• 5 A/V Inputs and 1 Output
• 2 Audio Inputs and 1 Output
• Late Night Mode (High/Low/Off)
• Digital Upsampling
• Display Dimmer (3 Modes)
• Headphone Jack
• Sleep Timer (via Remote)
• Battery-Free Memory Backup
• Aluminum Front Panel
• Preprogrammed RI (Remote Interactive) Remote Control with Mode-Key LEDs










TX-SR705 ($649.99 a 27/08/2007)
7.1 A/V receiver, 100 watts per channel
3 HDMI 1.3a inputs, with HDMI upconversion
Onboard decoding for Dolby TrueHD and DTS-HD Master Audio
Faroudja DCDi video processing
THX Select2 Certified
Audyssey MultEQ auto speaker calibration
XM- and Sirius-ready
Multiroom functionality for two zones








TX-SR805 ($999.99 a 27/08/2007)

ADVANCED FEATURES
• THX Ultra2 Certified (with THX Processing)
• DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus Decoding
• HDMI (v. 1.3a) Audio and Video Processing
• HDTV-Capable HDMI (3 Inputs and 1 Output) and Component Video (100 MHz) Switching (3 Inputs and 1 Output)
• HDMI and Component Video Upconversion
• 192 kHz/24-Bit Burr Brown DACs for All Channels
• Three TI 32-Bit DSP Chips for Advanced Processing
• Bi-Amping Capability for Music and Movie Sound Effects
• Audyssey MultEQ XT to Correct Room Acoustic Problems and to Calibrate Speakers
• Powered Zone 2 and Zone 2/Zone 3 Pre Outs with Volume, Balance and Bass/Treble (Zone 2 Only) Controls
• Neural-THX Surround Technology for Gaming, Movies and Broadcasting
• Onkyo RIHD for System Control
• Compatible with RI (Remote Interactive) Dock for the iPod

AUDIO FEATURES
• 180 W/Ch Minimum into 6Ω, 1 kHz, IEC (1 Channel Driven)
• DTS®-ES™ Discrete/Matrix, DTS®Neo:6, DTS® 96/24,
Dolby® Digital EX™, Dolby® Pro Logic IIx
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• WRAT (Wide Range Amplifier Technology)
• 6 Digital Inputs (3 Optical/3 Coaxial) and 1 Optical Output
• A-Form Listening Mode Memory
• Linear Optimum Gain Volume Circuitry
• Non-Scaling Configuration
• Tone Control (Bass/Treble) for All Channels
• Color-Coded 7.1-Multichannel Inputs and Pre Outs
• Independent Crossover Adjustment for F/C/S/SB (40/50/60/70/80/90/100/120/150/200 Hz)
• Double Bass Function

VIDEO FEATURES
• 6 S-Video Inputs and 2 Outputs
• 6 Composite Video Inputs and 2 Outputs
• Front Panel Auxiliary Input (for Camcorders, Game Consoles, etc.)

OTHER FEATURES
• Color-Coded Dual Banana Plug-Compatible Speaker Posts
• Deinterlacer with Faroudja DCDi Edge(tm) (Directional Correlational Deinterlacing) Technology
• Pure Audio Mode
• A/V Synchronization Function (Up to 250 ms in 5 ms Steps)
• 40 FM/AM Radio Presets
• RDS (PS/RT/PTY/TP)
• Onscreen Display
• RS232 Port
• IR Input and Output
• 12V Trigger
• 6 A/V Inputs and 1 Output
• 2 Audio Inputs and 1 Output
• Phono Input
• Direct Mode
• IntelliVolume
• Late Night Mode (High/Low/Off)
• Headphone Jack
• Aluminum Front Panel
• Preprogrammed RI (Remote Interactive) Learning Remote Control with Macros and Mode-Key LEDs








TX-SR875 ($1,599.99, a 27/08/2007)

ADVANCED FEATURES

• THX Ultra2 Certified (with THX Processing)
• DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus Decoding
• VLSC (Vector Linear Shaping Circuitry) for All Channels
• HQV Reon-VX Video Processing
• HDMI (v. 1.3a) Audio and Video Processing (4 Inputs and 1 Output)
• HDTV-Capable HDMI Switching
• HDTV-Capable (100 MHz) Component Video Switching (3 Inputs and 1 Output)
• HDMI Upscaling and Upconversion
• Component Video Upconversion
• Burr-Brown 192 kHz/24-Bit Audio DACs (PCM1796) for All Channels
• Three TI AureusTM 32-Bit DSP Chips for Advanced Processing
• Bi-Amping and BTL (Bridged Transless) Capability for Music and Movie Sound Effects
• Audyssey MultEQ XT to Correct Room Acoustic Problems and to Calibrate Speakers
• Powered Zone 2 (Audio and Video); Zone 2 and Zone 3 Pre Outs; Independent Control for Volume, Balance (Zone 2 and Zone 3) and Bass/Treble (Zone 2 Only)
• Neural-THX® Surround Technology for Gaming, Movies and Broadcasting
• Onkyo RIHD (Remote Interactive Over HDMI) for System Control (Works with Certain Key Functions of Panasonic's VIERA Link)
• Compatible with RI (Remote Interactive) Dock for the iPod


AUDIO FEATURES

• 200 W/Ch Minimum into 6Ω, 1 kHz, IEC (1 Channel Driven)
• DTS®-ESTM Discrete/Matrix, DTS® Neo:6, DTS® 96/24, Dolby® Digital EXTM, Dolby® Pro Logic IIx
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• WRAT (Wide Range Amplifier Technology)
• 6 Digital Inputs (3 Optical/3 Coaxial) and 1 Optical Output
• A-Form Listening Mode Memory
• Linear Optimum Gain Volume Circuitry
• Non-Scaling Configuration
• Tone Control (Bass/Treble) for All Channels
• Color-Coded 7.1-Multichannel Inputs and Pre Outs
• Independent Crossover Adjustment for F/C/S/SB (40/50/60/70/80/90/100/120/150/200 Hz)
• Double Bass Function

VIDEO FEATURES

• 6 S-Video Inputs and 2 Outputs
• 6 Composite Video Inputs and 2 Outputs
• Front Panel Auxiliary Input (for Camcorders, Game
Consoles, etc.)


OTHER FEATURES

• Color-Coded Dual Banana Plug-Compatible Speaker Posts
• Pure Audio Mode
• A/V Synchronization Function (Up to 250 ms in 5 ms Steps)
• 40 FM/AM Radio Presets
• RDS (PS/RT/PTY/TP)
• Onscreen Display
• RS232 Port
• IR Input and Output
• 12 V Trigger
• 6 A/V Inputs and 1 Output
• 2 Audio Inputs and 1 Output
• Phono Input
• Direct Mode
• IntelliVolume
• Late Night Mode (High/Low/Off)
• Headphone Jack
• Aluminum Front Panel
• Preprogrammed RI (Remote Interactive) Learning Remote Control with Macros and Mode-Key LEDs










TX-NR905 ($1,999.99, a 27/08/2007)

• est Shipping date mid to late August
• Full A/V Processing via HDMI 1.3a with Upconversion (4 in 2 out)
• HDMI Deep Color Capable (36bit)
• Component Video Upconversion and HDTV-Capable (100 MHZ) Video Switching (? in 1 out)
• WRAT/ Optimum Gain Volume Circuitry/ Non-Scaling Configuration/ A-Form Listening Mode Memory/ RI
• HQV Reon-VX Video Processing and NSV Precision Video
• Audyssey MultEQ XT Room Acoustics Correction
• 7.1 Multichannel Inputs for PCM Delivery of Hi-Def Audio Sources
• DOLBY Decoder - PLIIx, DD, DD-EX, TrueHD
• DTS Decoder - DTS, ES, NEO6, 96/24, HD Master Audio
• THX Ultra2 Certified
• S-Video (? in 1 out) *
• Digital Audio IN (OPT/COAX) ?/? *
• Composite (? in 1 out) *
• 7.1 Preouts
• Burr-Brown 192/24-bit DAC on all Channels (TI Architecture (PCM1796))
• Power 140W/Ch
• Powered Zone 2 with Video Balance Volume and tone control
• Powered Zone 3
• Bi-Amp & BTL Capable
• Dual Push-Pull Amp with 3 stage inverted
• Toroidal Transformer and Seperate Transformers for processing.
• XM and Sirius ports
• XM HD Surround Sound through Neural Surround
• Networking Capabilities via Onkyo's e-Control System for Internet Radio and WMA
• Built-in HD radio receiver
• RIHD (Remote Interactive over HDMI) communication protocol
• Dimensions H x W x D: 194 x 435 x 458.5 mm.
• Weight: 23.3 kg.

LOS PRECIOS ESTAN SACADOS DE A Q U I

Más información-1 A Q U I

Más información-2 A Q U I

Más información-3 A Q U I

Imágenes detalladas A Q U I

Descarga de manuales A Q U I

COMPARADOR de modelos Onkyo

En USA ya estan empezando a recibir los primeros 605 y 805.

Se comenta/rumorea que tienen una opcion "no documentada" a la que se accede a traves de un menú oculto y que permite escalar video a 720p.

Cualquier señal introducida en el 605 via HDMi no va a ser modificada. 480i in - 480i out.

Si introduces una señal 480i vía analógica vas a obtener 480p out ó 720p si se selecciona en el menú oculto.

Si introduces una señal 720p vía analógica vas a obtener 720p out.

Si introduces una señal 1080i vía analógica vas a obtener 720p out.


Caso distinto es el del modelo 875 y 905 que SI escalan hasta 1080p

Hay rumores de problemas de stock del chip que usa el HDMi 1.3 por eso Yamaha incorporo solo HDMi 1.2a en sus nuevos productos.

Diferencias entre ellos:

Pues en cuanto este disponible me lanzo a por el 875...

Despues de leerme la review no me queda muy claro el tema de la biamplificacion de los frontales, entiendo que para poder hacerlo tienes que sacrificar los surround...

Salu2

estos nuevos av con hdmi1.3 soportan 1080p24??

Muchas gracia spor el magnífico post.

Por mi parte el interés se centra el en Integra DTR 9.8. A ver si tenemos la suerte de contar aquí con este pedazo de procesador.

Un slaudo, Javier G.

Iniciado por javierg

Muchas gracia spor el magnífico post.

Por mi parte el interés se centra el en Integra DTR 9.8. A ver si tenemos la suerte de contar aquí con este pedazo de procesador.

Un slaudo, Javier G.

He estado viendo la serie integra, ¿pero que aporta con respecto a los que ha puesto LeFric?

Salu2

Como el otro post es más completo y tiene + info, propongo que el moderador cierre este para no volvernos locos buscando en los dos.

Un saludo, Javier G.
